Gearbox - Multiturn


A) SUPPLEMENTARY (SECONDARY) SPUR GEAR BOX RANGE - OUTPUT MOTION - ROTARY
SR NO
GEAR BOX MODEL
GB RATIO
MAX O/P TORQUE IN KGM
MAX SPINDLE ø ACCEPTANCE
1
SG02
2.5 ISTO 1
40
52 MM
2
SG04
4 ISTO 1
65
55 MM
3
SG06
6 ISTO 1
100
60 MM
4
SG08
8 ISTO 1
130
80 MM
5
SG12
12 ISTO 1
200
90 MM
6
SG 212
12 ISTO 1
400
100 MM

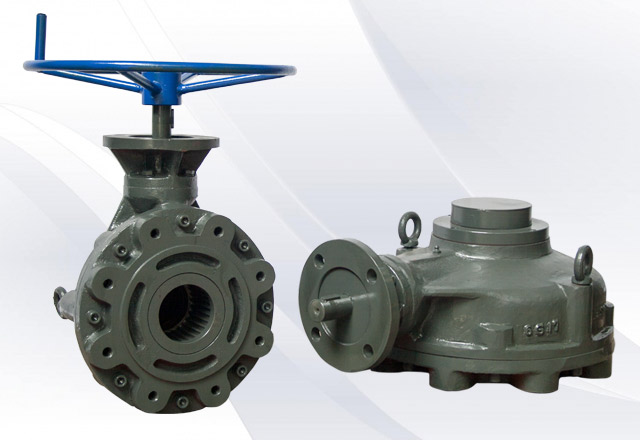

B) SUPPLEMENTARY (SECONDARY) FULL TURN WORM GEAR BOX RANGE OUTPUT MOTION -ROTARY
SR NO
GEAR BOX MODEL
GB RATIO
MAX O/P TORQUE IN KGM
MAX SPINDLE ø ACCEPTANCE
1
WG402
40 ISTO 1
90
40 MM
2
WG451
45 ISTO 1
155
52 MM
3
WG452
45 ISTO 1
180
52 MM
4
WG453
45 ISTO 1
260
65 MM
5
WG454
45 ISTO 1
330
80 MM
6
WG501
50 ISTO 1
440
80 MM
7
WG561
56 ISTO 1
550
100 MM
8
WG601
60 ISTO 1
730
100 MM
9
WG562
56 ISTO 1
900
110 MM
10
WG541
54 ISTO 1
1400
110 MM
11
WG602
60 ISTO 1
2000
120 MM

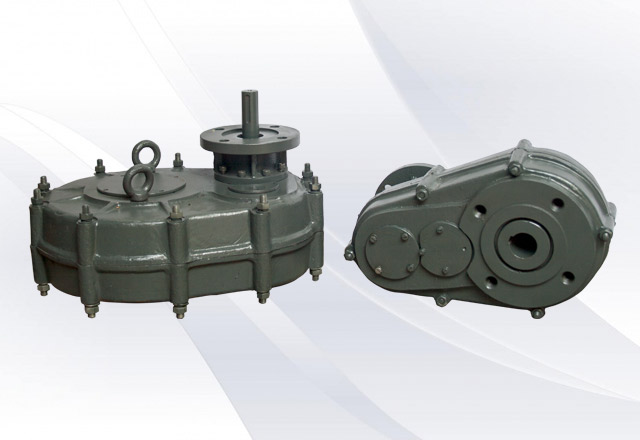

C) SUPPLEMENTARY (SECONDARY) FULL TURN WORM GEAR BOX RANGE WITH INTERMIDIATE SPUR GEAR BOX OUTPUT MOTION - ROTARY
SR NO
GEAR BOX MODEL
GB RATIO
MAX O/P TORQUE IN KGM
MAX SPINDLE ø ACCEPTANCE
1
WG1801
180 ISTO 1
3300
80 MM
2
SWG2001
200 ISTO 1
4400
80 MM
3
SWG2241
224 ISTO 1
5500
100 MM
4
SWG2401
240 ISTO 1
7300
100 MM
5
SWG3361
336 ISTO 1
9000
100 MM
6
SWG4861
486 ISTO 1
14000
110 MM
7
SWG2161
216 ISTO 1
14000
110 MM
8
SWG2402
240 ISTO 1
2000
120 MM
9
SWG9601
960 ISTO 1
2000
120 MM
10
SWG2881
288 ISTO 1
2500
160 MM
11
SWG11521
1152 ISTO 1
2500
160 MM
12
SWG6401
640 ISTO 1
3300
160 MM
13
SWG12801
1281 ISTO 1
3300
160 MM
14
SWG6081
6081 ISTO 1
4200
170 MM
15
SWG1216
1216 ISTO 1
4200
170 MM
16
SWG5281
528 ISTO 1
5100
170 MM
17
SWG10561
1056 ISTO 1
5100
170 MM
D) SUPPLEMENTARY (SECONDARY) FULL TURN BEVEL GEAR BOX RANGE OUTPUT MOTION - ROTARY
SR NO
GEAR BOX MODEL
GB RATIO
MAX O/P TORQUE IN KGM
MAX SPINDLE ø ACCEPTANCE
1
MBG01
2 ISTO 1
15
25
2
MBG02
2.75 ISTO 1
25
30
3
MBG03
3 ISTO 1
40
40
4
MBG04
3.5 ISTO 1
60
50
5
MBG04A
4 ISTO 1
110
55
6
MBG05
4.5 ISTO 1
180
62
7
MBG05A
5 ISTO 1
250
72
8
MBG06A
5.5 ISTO 1
350
90
9
MBG06A
6 ISTO 1
520
95
E) SUPPLEMENTARY (SECONDARY) FULL TURN BEVEL GEAR BOX RANGE WITH INTERMIDIATE SPUR GEAR BOX OUTPUT MOTION - ROTAR
SR NO
GEAR BOX MODEL
GB RATIO
MAX O/P TORQUE IN KGM
MAX SPINDLE ø ACCEPTANCE
1
MBGS04
7 ISTO 1
60
50
2
MBGS04A
8 ISTO 1
110
55
3
MBGS05
11.25 ISTO 1
180
62
4
MBGS05A
12.5 ISTO 1
250
75
5
MBGS06
16.5 ISTO 1
330
90
6
MBGS06A
18 ISTO 1
520
95
F) SUPPLEMENTARY (SECONDARY) QUARTER TURN WORM GEAR BOX RANGE OUTPUT MOTION - 90˚
SR NO
GEAR BOX MODEL
GB RATIO
MAX O/P TORQUE IN KGM
MAX SPINDLE ø ACCEPTANCE
1
WG402
40 ISTO 1
90
40 MM
2
WG451
45 ISTO 1
155
52 MM
3
WG452
45 ISTO 1
180
52 MM
4
WG453
45 ISTO 1
260
65 MM
5
WG454
45 ISTO 1
330
80 MM
6
WG501
50 ISTO 1
440
80 MM
7
WG561
56 ISTO 1
550
100 MM
8
WG601
60 ISTO 1
730
100 MM
9
WG562
56 ISTO 1
900
110 MM
10
WG541
54 ISTO 1
1400
110 MM
11
WG602
60 ISTO 1
2000
120 MM
G) SUPPLEMENTARY (SECONDARY) QUARTER TURN WORM GEAR BOX RANGE WITH INTERMEDIATE SPUR GEAR BOX.
SR NO
GEAR BOX MODEL
GB RATIO
MAX O/P TORQUE IN KGM
MAX SPINDLE ø ACCEPTANCE
1
WG1801
180 ISTO 1
3300
80 MM
2
SWG2001
200 ISTO 1
4400
80 MM
3
SWG2241
224 ISTO 1
5500
100 MM
4
SWG2401
240 ISTO 1
7300
100 MM
5
SWG3361
336 ISTO 1
9000
100 MM
6
SWG4861
486 ISTO 1
14000
110 MM
7
SWG2161
216 ISTO 1
14000
110 MM
8
SWG2402
240 ISTO 1
2000
120 MM
9
SWG9601
960 ISTO 1
2000
120 MM
10
SWG2881
288 ISTO 1
2500
160 MM
11
SWG11521
1152 ISTO 1
2500
160 MM
12
SWG6401
640 ISTO 1
3300
160 MM
13
SWG12801
1281 ISTO 1
3300
160 MM
14
SWG6081
6081 ISTO 1
4200
170 MM
15
SWG1216
1216 ISTO 1
4200
170 MM
16
SWG5281
528 ISTO 1
5100
170 MM
17
SWG10561
1056 ISTO 1
5100
170 MM

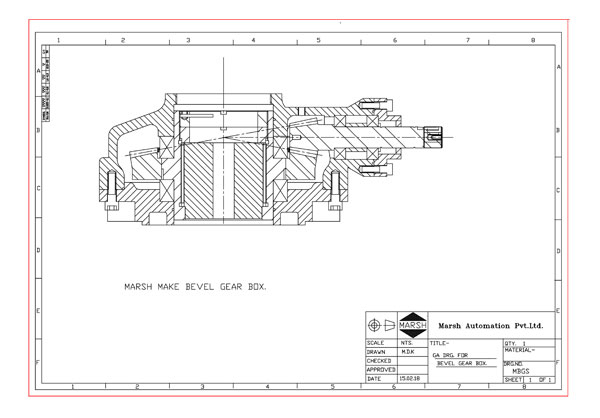

bevel-gear-box
