The "" Electric Actuators are electromechanical units used for operating the final control elements like valves or dampers to control the flow of fluids flowing thru the pipes or ducts. The specific advantages of using these units are :

Ease of operation.
Remote control facility.
Proportional action of final control element in close loop system.
Attaining & holding the desired preset position of the valve/damper.
Various indications & alarms are available on the remote control panel & also on the unit.
Emergency manual operation possible in case of power failure.
Works on most convenient & easily available source of energy i.e. electricity.
Models available to cover wide range of valves & dampers.
Units with Integral starter will save cost of cables.
Units with Electronic controller will facilitate field programming.

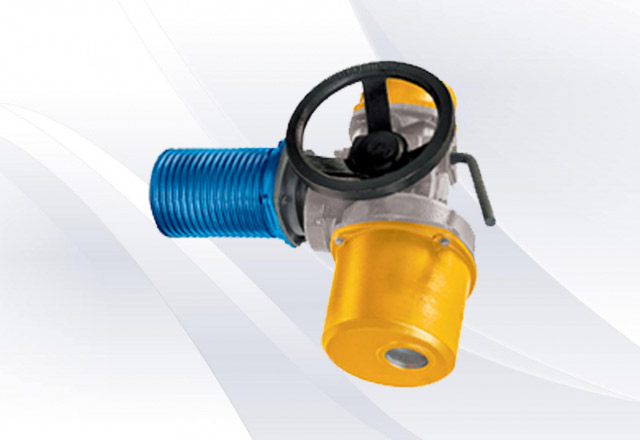

Design

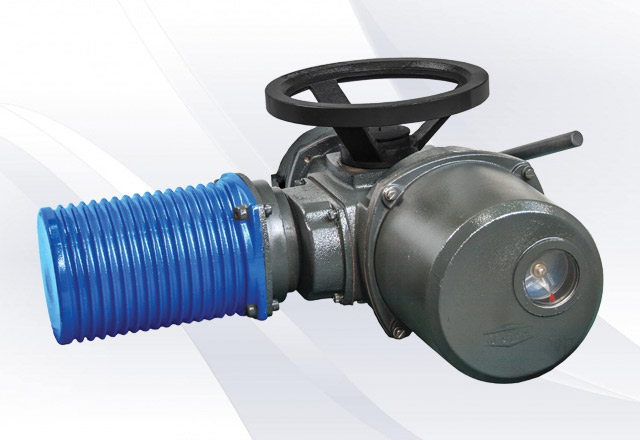

The Basic design of the Emtork Actuator consists of an electric motor, reduction gear unit and control compartment.
Various models have been developed to suit operating torque, speed, process parameters, area of operation etc.
Additional supplementary spur and worm gear boxes are offered to get higher operating torques and quarter turn motion.
Linear motion actuators have been developed to impart the required thrust to operate globe valves.
The models are available for on / off and regulating duly and also for hazardous area application.

Modes, Types & Models of

Electric Actuators

Modes	Types	Models
On/Off-Isolating Modulating / Regulating Safe Area Flameproof / Explosion Proof	Multiturn Electric Actuators	M30, M60, M80, M120, M150, M200, M250, M300, M500, M600, M1000 Also with supplementary spur gear boxes.
	Quarterturn Electric Actuators	QM0, QM1, Rotary Actuators With Supplementary Worm Gear Boxes Also TM0/WG & TM1/WG
	Linear Electric Actuators	LM0,LM1 & Rotary Actuator With Attachment For Linear Motion

Features of

Actuators

Standard Features

Electric motor TEFC, 3ph, S-1 Duty
Insulation class 'F'
Travel limit switches -2 Nos (1NO + 1 NC)
Torque limit switches -2 Nos(l NO + 1 NC)
Continuous type local position indicator
Handwheel with clutch mechanism
Protection class IP 65
Various types of output couplings viz A/B/C/D/E as per DIN 3210
Hammer-blow effect

Optional Features

Electric motor- TESC,3ph,S2 OR S4 Duty
Better class of insulation for motor
Travel limit switches 2 NO+2 NC in place of 1 NO+1 NC-2 Nos
Torque limit switch 2 NO + 2 NC in place of 1NO+1NC-2Nos
Additional Travel limit switches (1 NO + 1 NC) - 4Nos(Extra) –or (2 No. + 2 NC - 2 Nos. extra)
Feed back potentiometer
Remote position indicators-Analogue / Digital / Bar graph
Space heater
Electromagnetic, Electronic brake for the motor
Protection class IP67/IP68
Various types of local & remote panels
Foot mounting brackets
Set of linkages
Tailor made accessories to suit customer's specific requirements
Thermostats in motor winding
Field / Panel mounted source to Convert 220VACto 24 VDC required for transmitter
Supplementary Spur Worm gear boxes
Attachment for linear motion
Retrofitting

Detail features of Electrical Actuators

Drive Motor:

Emtork Electric Actuators are equipped with three phase, squirrel cage induction motor having high starting torque. These motors comply with IS-325 specifications.

Supply condition	415 VAC, 3ph / 380VAC,3ph / 2 20 VAC,1ph
Enclosure	TEFC/ TESC
Class of insulation	std.'F'
Class of protection	IP55 / 65/67/68
Duty	S1 / S2 / S4
Ambient temp	50° c

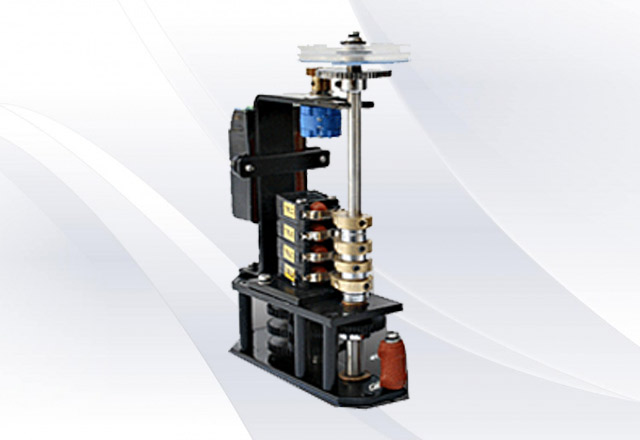

Travel limit switches:

These switches are provided to cut off the actuator supply at the end of the preset travel in either direction. These switches are operated by cams which can be reset at site. Additional travel switches can be provided to get feed back of various valve positions

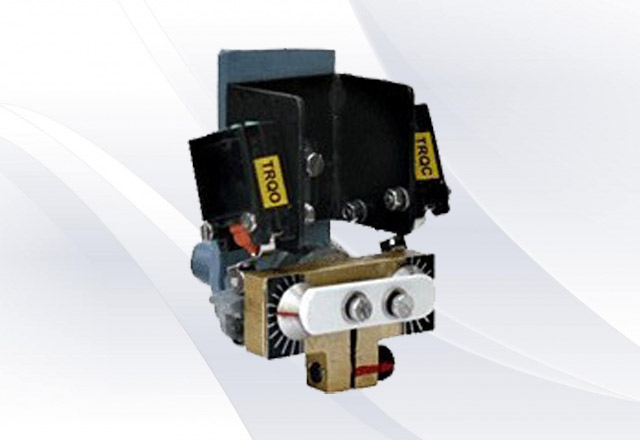

Torque limit switches:

These switches are provided to cut off the actuator the torque developed in the system is more than the desired preset value, in either direction. Torque switch in closing direction can also be set to achieve leak-proof / tight shut off of the valve.

Local indicator:

A continuous type mechanical local position indicator is provided on the actuator to show the actual mechanical position of the final control element.

Handwheel with motor overriding feature:

Emtork actuator is provided with a handwheel for emergency manual operation. The selector fork lever when put on to 'hand-position', disconnects the motor drive and connects to hand wheel drive so that desired operation can be done by hand wheel. When the motor is switched on, the hand wheel connection gets disengaged automatically and the operation is carried out by electric power.

Weather protection:

The emtork actuators are supplied with IP65/IP67/IP68 class of protection as per IS-4691 & IS-2147 duly certified by concerned authorities. The ingrace of dust and water is prevented to protect the inside mechanism.

Output shaft designs:

The basic rotary actuators are supplied A,B,C,D,E as per DIN 3210.

Hammer blow effect:

An inbuilt feature of the ‘emtork’ actuator and is achieved thru “lost motion principle” and by using higher starting torque motor.

Feed back potentiometer / transmitter:

A feed back signal, in terms of change in resistance or current proportional to the valve position, is available thru potentiometer or transmitter. A non- contact LVDT type transmitter can also be provided.

Remote indicators:

The signal coming from potentiometer is converted thru stabilized power source and read by analogue/digital on remote panel

Space heater:

An anti-condensation heater can be provided in the switching compartment while using the actuator in humid/damp environment.

Brake:

Electromagnetic or electronic brake can be provided for the motor to stop the actuator instantly

Control panels:

Various types of control panels can be provided for local, remote and combined local plus remote operations of the actuator.

Positioner:

Panel or field mounted electronic positioner can be supplied which can accept a control command of 4-20mA and position the final control element accordingly, 4-20 mA feed back signal is also available from the positioner.

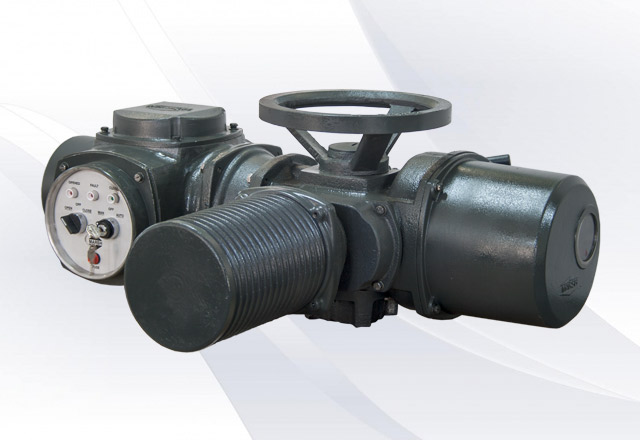

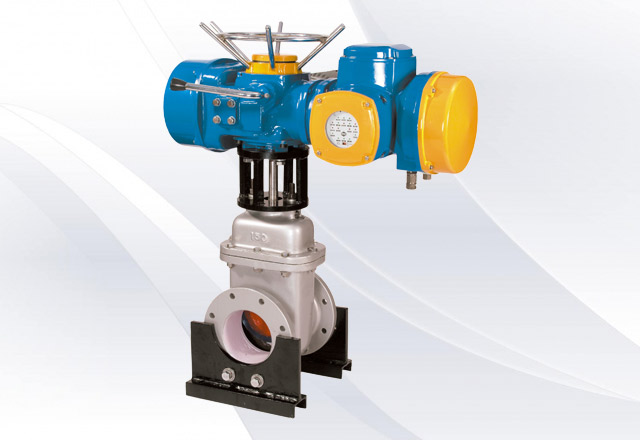

Integral panel – electrical hardware logic

A reversing starter consisting of push buttons, indicating lamps, contactors, O/L relay etc. can be supplied as an integral part of the actuator. This will save a major cost of cabling. A parallel operation & monitoring from remote station is also possible. A field mounted valve positioner unit can also be supplied in the integral panel.

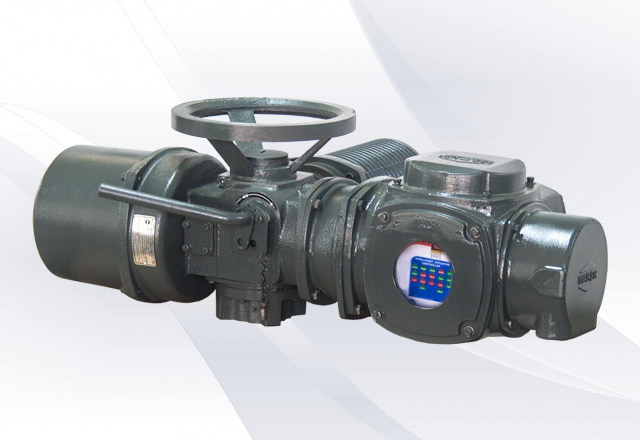

Integral panel - electronic PCB logic

Field programming thru electronic logic is possible by this integral panel. In addition to the electrical hardware various PCBs are provided to select the parameters such as inching / noninching operation, closing by torque switch etc. Parallel functions from remote station are also possible.

Blinker transmitter:

An actuator mounted transmitter can be supplied which will indicate that the actuator is in running condition, thru a blinking lamp on control panel.

Foot mounting brackets & set of linkages:

These items can be supplied to suit various site conditions so that the final control element can be operated from a distant location.

Thermostats in motor:

These are embedded in the motor winding so as to protect the motor from burning due to overheating of motor winding.

Source:

A field / panel mounted source can be supplied for converting 220 VAC to 12/24/36 VDC, supply which is normally required to energize a two wire transmitter.

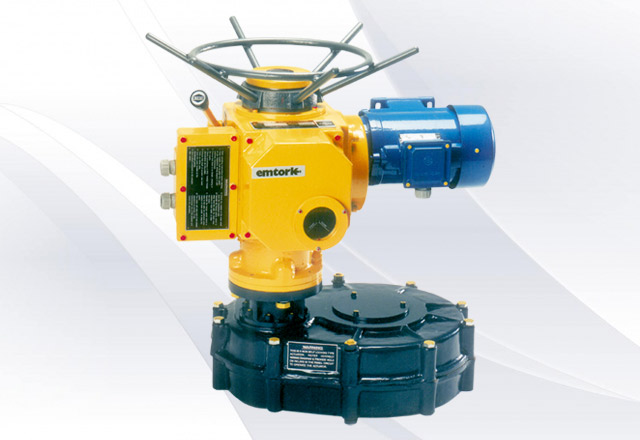

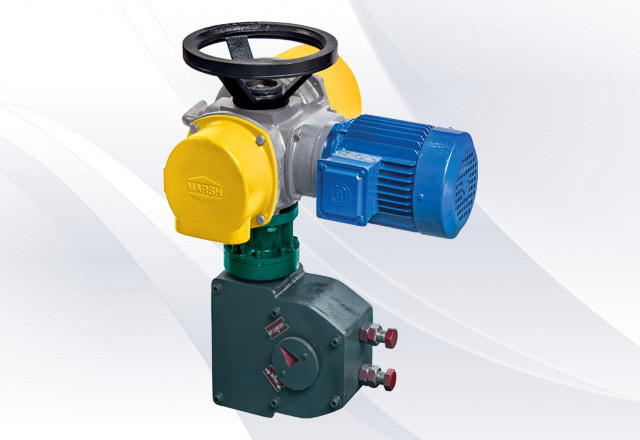

Supplementary spur gear boxes:

To increase the output torque of rotary actuators various types of spur gear boxes can be supplied. These gear boxes have variety of reduction ratios & output couplings viz A/B/C/D/E as per DIN 3210.

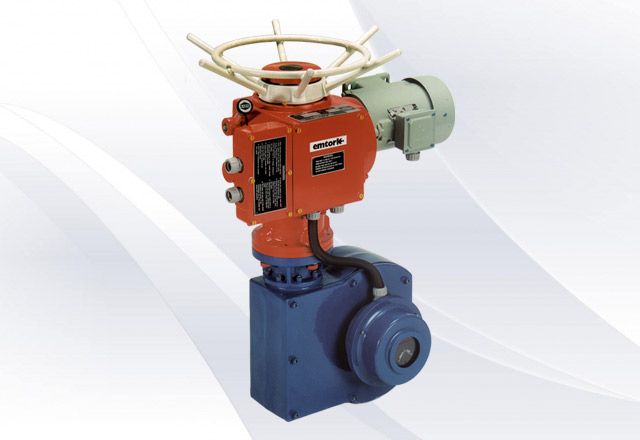

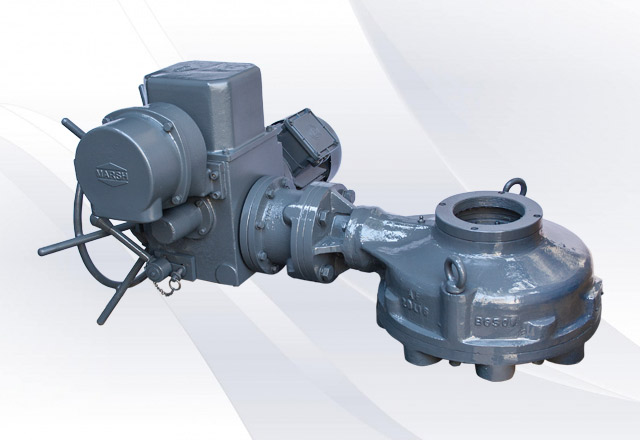

Supplementary worm gear boxes:

Worm gear boxes can be supplied to convert the output motion of rotary actuator in to quarter-turn movement to suit the operations of butterfly, ball & plug valves. Various models are available with different reduction ratios. Out put coupling for these models will be normally ‘E’ for direct mounting & ‘D’ for mounting thru brackets & linkages.

Linear attachment:

To convert rotary motion into linear to suit globe valves, a linear attachment is provided for the actuator. Various thrust values are available to suit the applications.

Retrofitting:

To convert the existing manually operated valves into “motor-operated”, retrofitting services are offered; which includes, site study, selection of equipment, spot measurement, designing & manufacturing mounting brackets, couplers, cabling etc. and installation and commissioning of equipment on turnkey basis. This will also cover the services of compating / synchronizing the system with control parameters of other instruments.

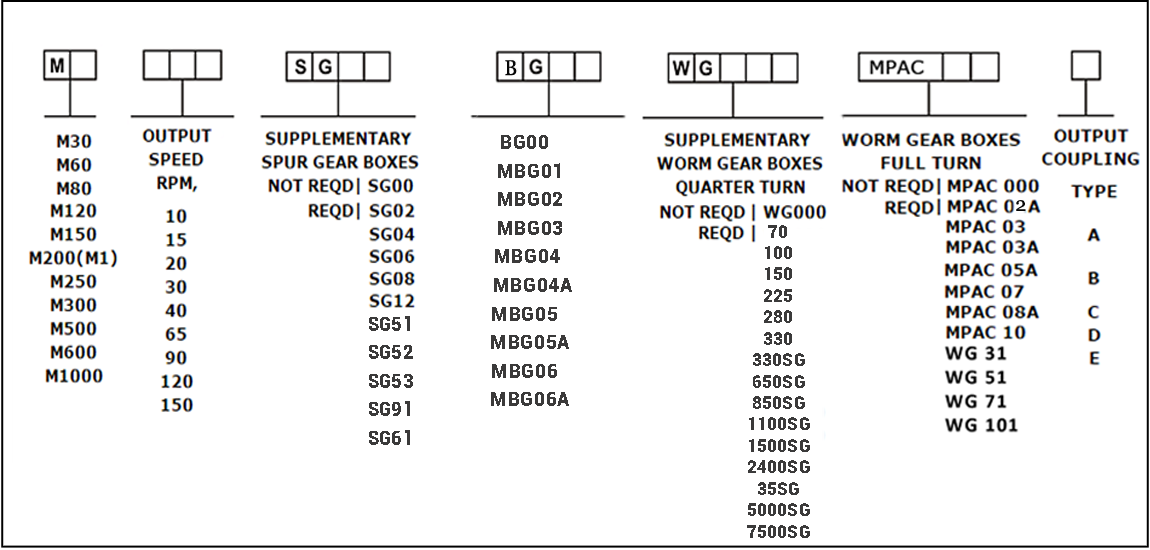

Ordering Specifications

I) BASIC MODELS WITH SUPPLEMENTARY SPUR, QUARTER TURN WORM AND FULL TURN WORM GEAR BOXES

IV) Flame / Explosion Proof Electrical Actuators:

- Add the prefix 'F' to all the above model specifications when ordering for Flame / Explosion proof units.

Example : FM1 / 010 / SG00 / WG030 / E.

Torque Switch Arrangement

Request Quote

Travel Switch Arrangement

Request Quote

Technical Specifications of basic Electrical Actuator models

Model	Output Data				Motor Data
	Output Speed RPM (Aprox.)	Output Torque Nm		Actuator Self Locking	Rated Power HP	No. of Poles	Rated Current AMP (Aprox.)	Power Factor FL	Effi. % (FL)	Mounting Base As per IS 9334
	Output Speed RPM (Aprox.)	Rated	Adj Range	Actuator Self Locking	Rated Power HP	No. of Poles	Rated Current AMP (Aprox.)	Power Factor FL	Effi. % (FL)	Mounting Base As per IS 9334
M30	10,15,20 30,40 65,90 120,150	30	10-30	Yes Yes Yes No	0.16 0.25 0.35 0.50	4 2 2 2	0.42 0.57 0.71 1.00	0.75 0.76 0.79 0.78	53 58 62 67	F10
M60	10,15,20 30,40 65,90 120,150	60	20-60	Yes Yes Yes No	0.16 0.25 0.50 1.00	4 2 2 2	0.42 0.57 1.00 1.70	0.75 0.76 0.78 0.82	53 58 67 75	F10
M80 (M0)	1O to 70 80 to 140 190 to 365	80	25-80	Yes Yes No	1.00 3.00 3.00	4 2 2	1.80 4.55 4.55	0.78 0.83 0.83	76 81 81	F10
M120	10,15,20 30,40 65,90 120,150	120	40-120	Yes Yes Yes No	0.25 0.50 1.00 1.50	4 2 2 2	0.58 1.00 1.70 2.40	0.75 0,78 0.82 0.82	58 67 75 79	F10
M150	10,15,20 30,40 65,90 120,155	150	50-150	Yes Yes Yes No	0.35 0.75 1.50 2.00	4 2 2 2	0.77 1.33 2.40 3.10	0.74 0.79 0,82 0.86	61 73 79 78	F10
M200 (M1)	10 to30 40 to 60 80 to 120	200	60-200	Yes No No	1.00 2.00 3.00	4 4 2	1.80 3.30 4.55	0.78 0.80 0.83	76 78 81	F14
M250	10,15,20 30,40 65,90 120,150	250	80-250	Yes Yes Yes No	0.50 1.00 2.00 3.00	4 2 2 2	1.04 1.70 3.10 4.55	0.72 0.82 0.86 0.83	69 75 78 81	F14
M300	10,15,20 30,40 65,90 120,150	300	100-300	Yes Yes Yes No	0.75 1.50 3.00 5.00	4 2 2 2	1.40 2.40 4.55 7.20	0.78 0.82 0.83 0.87	72 79 81 82	F14
M500	10,15,20 30,40 65,90 120,150	500	160-500	Yes Yes Yes No	1.00 2.00 5.00 7.50	4 2 2 2	1.80 3.10 7.20 10.20	0.78 0.86 0.87 0.89	76 78 82 84	F14
M600	10,15,20 30,40 65,90 120,150	600	200-600	Yes Yes Yes No	1.50 3.00 5.00 7.50	4 2 2 2	2.50 4.55 7.20 10.20	0.81 0.83 0.87 0.89	76 81 82 84	F14
M1000	10,15,20, 30,40,60, 80, 120	1000	300-1000	Yes Yes Yes No	1.5 3 5 10	6 4 2 2	2.9 4.6 7.2 14	0.69 0.82 0.87 0.88	76 81 82 85	F16

Notes :

At higher speeds the rated output torque may get reduced slightly.
For regulating Duty models the output speed of the actuator should be restricted up-to 40RPM to avoid inertia problems.
Additional details for regulating duty models will be available on request.
